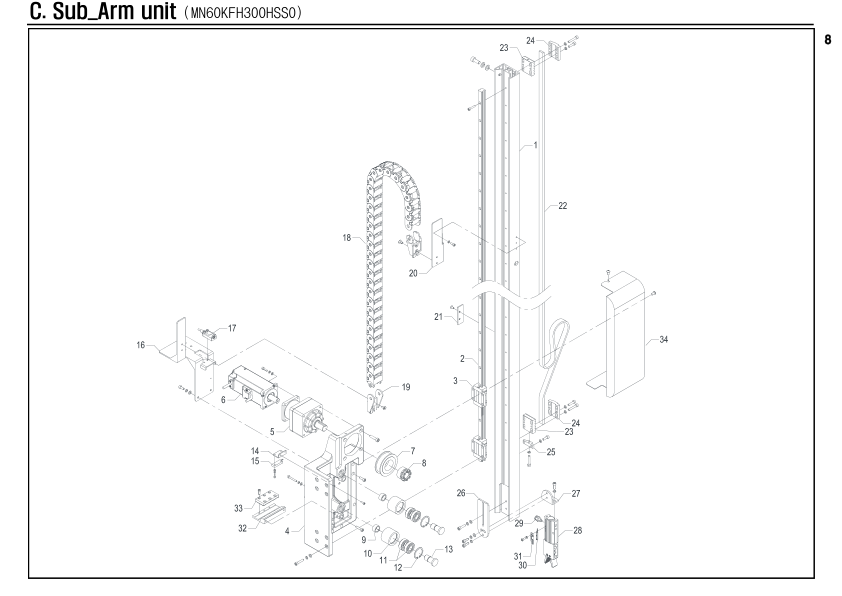

Sub_Arm unit

Unit Number: MN60KFH300HSS0

Robot: ZEST-600D 📎

Hover over image to inspect details

Item Number	Part Number	Part Name	Quantity	Remarks
C-1	MN60KFH3002MC0	File	1
C-2	PMLRHGR15R1680	LM rail	1
C-3	PLMBQHW15CC888	LM block	2
C-4	MN60KFH3001MC0	LM plate	1
C-5	PRESSF5CPB0488	Reducer	1
C-6	PMTBMA401A2TN6	Servo motor	1
C-7	MN08KFA4012ZZ0	Timing pulley	1
C-8	PPLMMA19338888	Power lock	1
C-9	M030SBB4018ZZ0	Collar	2
C-10	M015MAB3011ZZ0	Roller	2
C-11	PBRA6002ZZ8888	Bearing	4
C-12	PRGH032H888888	Snap ring	2
C-13	M040KJG3033ZZ0	Bearing holder	2
C-14	MN60KFH3042ZZ0	Bracket	1
C-15	PSSMRS1SH88888	Sensor	1
C-16	MN60KFH3034ZZ0	Cableveyor fixed bracket	1
C-17	PSSRHYP18S5NAF	Sensor	1
C-18	PCVH3202307588	Cableveyor link	34
C-19	PCVE3202300088	Cableveyor end bracket	1
C-20	MN60KFH3023ZZ0	Cableveyor Bracket	1
C-21	MN20KFG4039ZZ0	Bracket	1
C-22	PBLTU8M1588888	Timing belt	2040
C-23	MN20KFG4033MC0	Belt gripper	2
C-24	MN20KFG4016ZZ0	Gripper block	2
C-25	MN20KFG4044ZZ0	Tension block	1
C-26	M015MAA3902MF0	Gripper bracket	1
C-27	MS55AT34005ZC0	Gripper bracket B	1
C-28	PAXAHYCITYPE88	Hy air chuck(I-type)	1
C-29	PAXFEC06M58888	Fitting	1
C-30	PSSMSHYCDA9388	Auto switch	1
C-31	MS55AT44302ZZ0	Sensor bracket	1
C-32	MN20KFG4032ZZ0	Belt plate	1
C-33	MN20KFG2031MC0	Belt gripper	1
C-34	MN60KFH3043ZZ0	Cover	1
