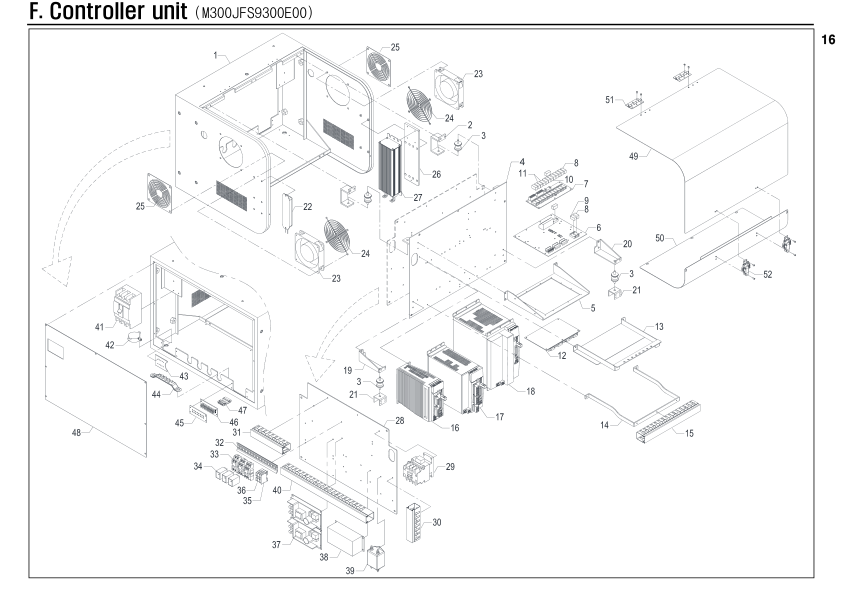

Controller unit

Unit Number: M300JFS9300E00

Robot: NEXIA-3000S 📎

Hover over image to inspect details

Item Number	Part Number	Part Name	Quantity	Remarks
F-1	M040WFS9002ZZ1	Body	1
F-2	M020HFA9004ZZ0	Controller bracket	2
F-3	PMXK25M6888888	Antivibration gels	4
F-4	M040YFG9003ZZ0	Plate	1
F-5	MN20KFA9004ZZ0	Plate	1
F-6	PBDDSC88888888	Board	1
F-7	PBDDIL88888888	Board	1
F-8	PRL1174PFDUS242	Relay	12
F-9	PRL2114PUS2488	Relay	1
F-10	PRL2014PUS2488	Relay	1
F-11	PRL2214PUS2488	Relay	2
F-12	PBDDMOTION8888	Board	1
F-13	MN20KFA9028ZZ1	Plate	1
F-14	M030SBA9009ZZ0	Controller bracket	1
F-15	M030SBA9026MC0	Duct-30	1
F-16	PMTXMCDHT35208	Servo drive	1
F-17	PMTXMEDHT73648	Servo drive	1
F-18	PMTXMFDHTB3A28	Servo drive	1
F-19	M020KFE9005ZZ0	Controller bracket	1
F-20	M020KFE9006ZZ0	Controller bracket	1
F-21	M020HFA9007ZZ0	Controller bracket	2
F-22	PEXRS052W20K88	Regenerative resistor	1
F-23	PEXFSJ1238HA28	Fan	2
F-24	PEXFS105105888	Fan cover	2
F-25	PEXFSJ12COVER8	Fan cover	2
F-26	M020KKA9033ZZ0	Plate	1
F-27	PEXRMCRA500888	Regenerative resistor	1
F-28	M030SBG9010ZZ0	Plate	1
F-29	PNSEGMC3288888	Contactor	1
F-30	MN20KFA9027MC0	Duct-30	1
F-31	MN20KFA9029MC0	Duct-30	1
F-32	M020KFA9020MC0	Terminal channel	1
F-33	PRLKLY28888888	Relay socket	3
F-34	PRLALY2N1DC248	Relay	3
F-35	PTLD0600015288	Terminal	3
F-36	PTLD0600015888	Separator	1
F-37	PSMASMPS000188	SMPS	2
F-38	PFTEWYFT30T1A8	Noise filter	1
F-39	PFTEDITES1T010	Noise filter	1
F-40	M030SBA9025MC0	Duct-30	1
F-41	PNSCABS33B3088	Circuit breaker	1
F-42	ES55TW4610060E	Buzzer cable	1
F-43	M020HFA9032ZZ0	Cover	1
F-44	PEXELEBAR14588	Earth Bar	1
F-45	M020HFA9023MC0	Plate	1
F-46	PBDCLEDVECT888	Board	1
F-47	E020PFA8040060	Cable	1
F-48	M030SBA9012ZZ0	Cover	1
F-49	M030SBB9013ZZ0	Cover	1
F-50	M030SBB9014ZZ0	Cover	1
F-51	PMXBYHS1560888	Hinge	2
F-52	PMXBY117888888	Hook	2
