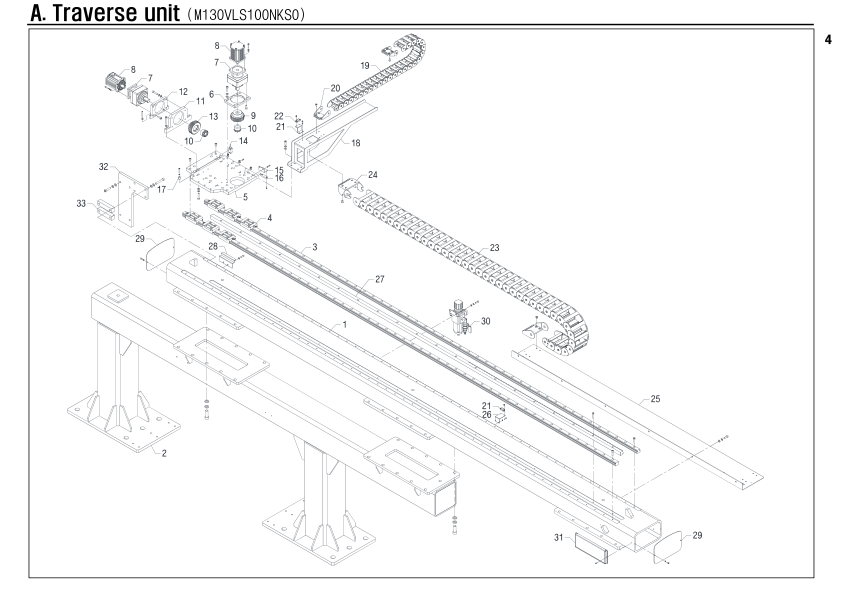

Traverse unit
Unit Number: M130VLS100NKS0
Robot: NEXIA-1800SW(KEBA) 📎
/M130VLS100NKS0.png)
Hover over image to inspect details
| Item Number | Part Number | Part Name | Quantity | Remarks |
|---|---|---|---|---|
| A-1 | M130VLS1001PW0 | Frame | 1 | |
| A-2 | M130VLS1002PW0 | Body | 1 | |
| A-3 | PLMRSAH303980L | LM rail | 2 | |
| A-4 | PLMBSAH30AL888 | LM block | 6 | |
| A-5 | M130VLS1003ZZ0 | LM base | 1 | |
| A-6 | M080ULA1007ZZ0 | Plate | 1 | |
| A-7 | PRESSFS9DPB088 | Reducer | 2 | |
| A-8 | PMTBEMJ08APB22 | Servo motor | 2 | |
| A-9 | M060KQE1008ZZ0 | Helical gear | 1 | |
| A-10 | PPLMMA24428888 | Power lock | 2 | |
| A-11 | M080ULA2006ZZ0 | Plate | 1 | |
| A-12 | M080ULA2024ZZ0 | Plate | 1 | |
| A-13 | M080JPA1008ZZ0 | Helical gear | 1 | |
| A-14 | PSSRHYP18S5NAF | Sensor | 1 | |
| A-15 | M015MAB1017MC0 | Bracket | 1 | |
| A-16 | PSSMRS52SH8888 | Magnet sensor | 1 | |
| A-17 | M080ULA2020ZZ0 | Pin | 6 | |
| A-18 | M130VLS2008ZZ0 | Cableveyor Bracket | 1 | |
| A-19 | PCVH4502B07588 | Cableveyor link | 24 | |
| A-20 | PCVE4502300088 | Cableveyor end bracket | 1 | |
| A-21 | M250ULA2018MC0 | Bracket | 1 | |
| A-22 | PSSMRS52SHC888 | Magnet | 2 | |
| A-23 | PCVH6252B12588 | Cableveyor link | 38 | |
| A-24 | PCVE6252300088 | Cableveyor end bracket | 1 | |
| A-25 | M130HKA1010ZZ0 | Cableveyor plate | 1 | |
| A-26 | M040HFA1018MC0 | Bracket | 1 | |
| A-27 | M130VLS1050ZZ0 | Helical rack | 1 | |
| A-28 | M040HFA1007ZZ0 | Bracket | 1 | |
| A-29 | M080ULA1011ZZ0 | Cover | 2 | |
| A-30 | PAXSTAW4000ASY | Filter regulator | 1 | |
| A-31 | MXAKAAB1000000 | Counter | 1 | |
| A-32 | M060JJS1021ZZ0 | Plate | 1 | |
| A-33 | M040HFA1021ZZ0 | Spacer | 2 |
