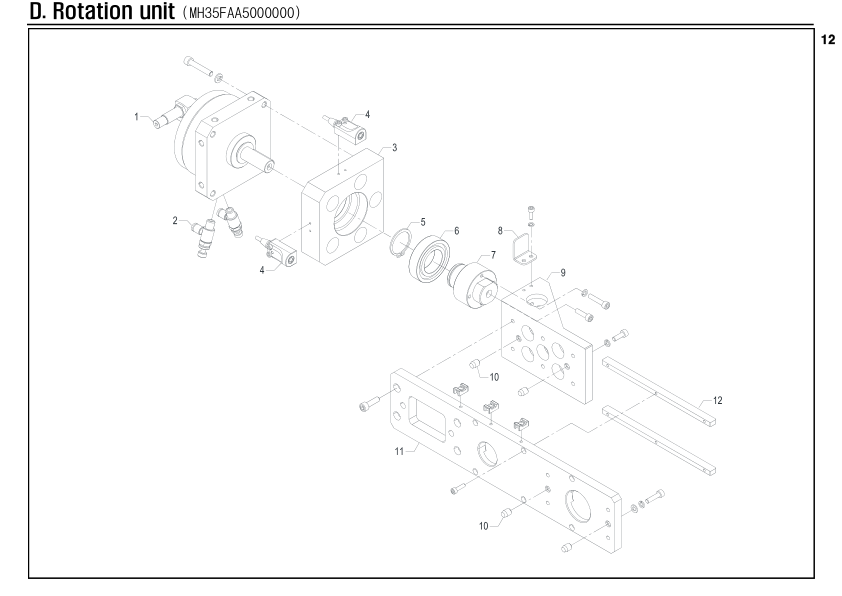

Rotation unit
Unit Number: MH35FAA5000000
Robot: SRIII-350 📎
Hover over image to inspect details
| Item Number | Part Number | Part Name | Quantity | Remarks |
|---|---|---|---|---|
| D-1 | PAXADSM32CC888 | Swivel module | 1 | |
| D-2 | PAXFESC04PT188 | Speed controller | 2 | |
| D-3 | MH35FAA5001ZZ0 | Housing | 1 | |
| D-4 | PSSRHYP18S5NAF | Sensor | 2 | |
| D-5 | PRGS030S888888 | Snap ring | 1 | |
| D-6 | PBRA6006ZZ8888 | Bearing | 1 | |
| D-7 | MH35FAA5002ZZ0 | Shaft | 1 | |
| D-8 | MH35FAA5004ZZ0 | Plate | 1 | |
| D-9 | MH35FAA5003ZZ0 | Block | 1 | |
| D-10 | M035HAA5012ZZ0 | Pin | 4 | |
| D-11 | MH35FAA5007ZZ0 | Plate | 1 | |
| D-12 | MH35FAA5008ZZ0 | Block | 2 |
