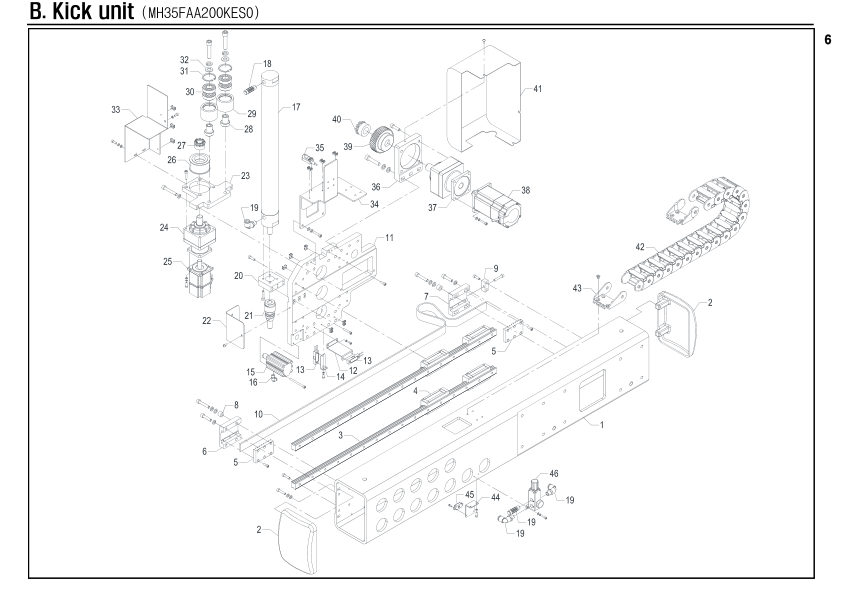

Kick unit
Unit Number: MH35FAA200KES0
Robot: SRIII-350 📎
Hover over image to inspect details
| Item Number | Part Number | Part Name | Quantity | Remarks |
|---|---|---|---|---|
| B-1 | MH35FAA2001PW0 | Frame | 1 | |
| B-2 | M015MAB1011PW0 | Cover | 2 | |
| B-3 | PLMRSHS250940L | LM rail | 2 | |
| B-4 | PLMBSHS25VKZ18 | LM block | 4 | |
| B-5 | M015MAB1002MC0 | Gripper | 2 | |
| B-6 | M015MAB1009ZZ0 | Gripper block | 1 | |
| B-7 | M015MAB1004ZZ0 | Gripper block | 1 | |
| B-8 | M015MAB1016ZZ0 | Block | 4 | |
| B-9 | M055MAA1004NI0 | Tension block | 1 | |
| B-10 | PBLTA103008888 | Timing belt | 1450 | |
| B-11 | MH35FAA2002ZZ0 | Base | 1 | |
| B-12 | MH35FAA2017MC0 | Bracket | 1 | |
| B-13 | PSSMRS52SH8888 | Magnet sensor | 2 | |
| B-14 | MN20KFA4040ZZ0 | Bracket | 1 | |
| B-15 | PAXAIDF32AS25T | Cylinder | 1 | |
| B-16 | PAXFEL04180888 | Fitting | 1 | |
| B-17 | PAXA3474504888 | Cylinder | 1 | |
| B-18 | PAXZSILENCER14 | Silincer | 2 | |
| B-19 | PAXFEL12140888 | Fitting | 3 | |
| B-20 | MH35FAA4026ZZ0 | Block | 1 | |
| B-21 | PAXFKM16X15888 | Ploating joint | 1 | |
| B-22 | MH35FAA4043ZZ0 | Cover | 1 | |
| B-23 | MN20KFG1004ZZ0 | Motor bracket | 1 | |
| B-24 | PRESSFS9CPB048 | Reducer | 1 | |
| B-25 | PMTBMSMD042G1S | Servo motor | 1 | |
| B-26 | MN20DAA1106ZZ0 | Timing pulley | 1 | |
| B-27 | PPLMMA19338888 | Power lock | 1 | |
| B-28 | M040DAA1007ZZ0 | Collar | 2 | |
| B-29 | M015MAB2010MC0 | Idle roller | 2 | |
| B-30 | PBRA6004ZZ8888 | Bearing | 4 | |
| B-31 | PRGH042H888888 | Snap ring | 2 | |
| B-32 | M040DAA1008ZZ0 | Washer | 2 | |
| B-33 | MH35FAA4044ZZ0 | Cover | 1 | |
| B-34 | MH35FAB4034ZZ0 | Plate | 1 | |
| B-35 | PSSRHYP18S5NAF | Sensor | 1 | |
| B-36 | MH35FAA4035ZZ0 | Block | 1 | |
| B-37 | PRESSFS9DPB088 | Reducer | 1 | |
| B-38 | PMTBMSMD082G1T | Servo motor | 1 | |
| B-39 | M080JPA1008ZZ0 | Helical gear | 1 | |
| B-40 | PPLMMA24428888 | Power lock | 1 | |
| B-41 | MH35FAA4042ZZ0 | Cover | 1 | |
| B-42 | PCVH4502B07588 | Cableveyor link | 17 | |
| B-43 | PCVE4502300088 | Cableveyor end bracket | 1 | |
| B-44 | M015MAB1018MC0 | Bracket | 1 | |
| B-45 | PSSMRS52SHC888 | Magnet | 1 | |
| B-46 | PAXSVEX113302G | Regulator | 1 |
