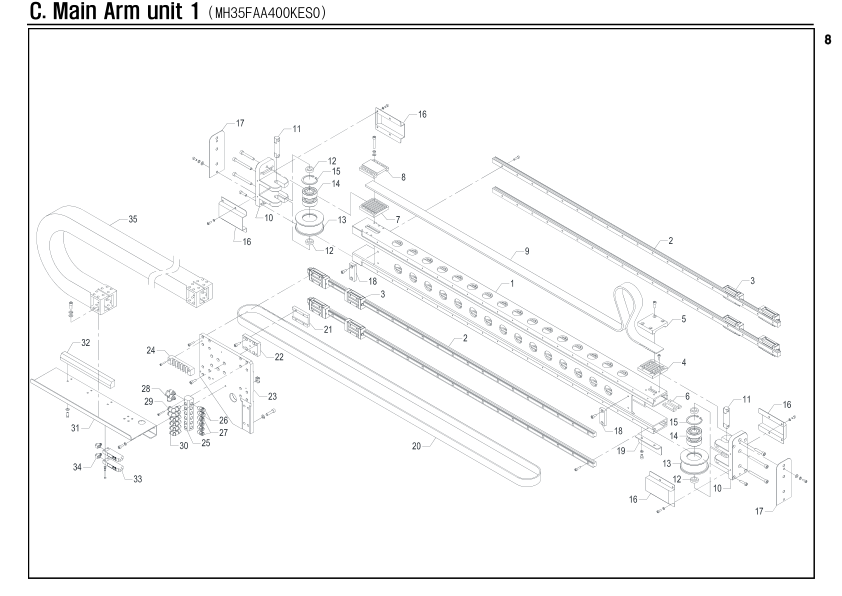

Main Arm unit

Unit Number: MH35FAA400KES0

Robot: SRIII-350 📎

Hover over image to inspect details

Item Number	Part Number	Part Name	Quantity	Remarks
C-1	MH35FAA4003MC0	File	1
C-2	PLMRSSR151140L	LM rail	4
C-3	PLMBSSR15XWKZ0	LM block	8
C-4	MH30ESA4023MC0	Gripper	1
C-5	MH35FAA4025ZZ0	Block	1
C-6	MH30ESA4016ZZ0	Nut	2
C-7	MH30ESA4005MC0	Gripper	1
C-8	MH35FAA4015ZZ0	Block	1
C-9	PBLTU8M3088888	Timing belt	1512
C-10	MH30ESA4010ZZ0	Block	2
C-11	MH30ESA4008ZZ0	Shaft	2
C-12	MH30ESA4021ZZ0	Collar	4
C-13	MH30ESA4009ZZ0	Idle roller	2
C-14	PBRA6302ZZ8888	Bearing	4
C-15	PRGH042H888888	Snap ring	4
C-16	MH35FAA4029ZZ0	Cover	4
C-17	MH35FAA4028ZZ0	Cover	2
C-18	MH30ESA4032ZZ0	Stopper	2
C-19	MH30ESA4019ZZ0	Plate	1
C-20	PBLTU5M2588888	Timing belt	2440
C-21	MH35FAA4013ZZ0	Gripper block	2
C-22	MH35FAA4012MC0	Gripper	2
C-23	MH35FAA4014ZZ0	Plate	1
C-24	PTLA07P8888888	Terminal	1
C-25	M020HFB5018ZZ0	Air Block	1
C-26	PAXFEC06180888	Fitting	2
C-27	PAXFEC04188888	Fitting	4
C-28	PAXFEL06M58888	Fitting	2
C-29	PAXFEL06180888	Fitting	2
C-30	PAXFEL04180888	Fitting	4
C-31	MH35FAA4031ZZ0	Plate	1
C-32	MH35FAA4017MC0	Guide bar	1
C-33	PAXVPS6102VNAM	Sensor	2
C-34	PAXFBUVLM56888	Nipple	2
C-35	PCVH3503510038	Cableveyor	38
C-36	MH35FAA4006MC0	File	1
C-37	PLMRSHS200840L	LM rail	2
C-38	PLMBSHS20VKZ18	LM block	4
C-39	MH35FAA4019ZZ0	Helical rack	1
C-40	M080ULA4056ZZ0	Block	1
C-41	MH35FAA4047ZZ0	Plate	1
C-42	PCVH4501B09588	Cableveyor link	15
C-43	PCVE4501300088	Cableveyor end bracket	1
C-44	MH35FAA4039ZZ0	Plate	1
C-45	PSSMRS52SHC888	Magnet	1
C-46	MH35FAA4020ZZ0	Block	1
C-47	MH35FAA4004ZZ0	Plate	1
C-48	MH35FAA4030ZZ0	Plate	1
C-49	MH35FAA4002ZZ0	Plate	1
C-50	MH35FAA4007ZZ0	Plate	1
C-51	M015MAB2004MC0	Horizontal motor Bracket	1
C-52	M015MAB2008ZZ0	Collar	2
C-53	M015MAB2010MC0	Idle roller	2
C-54	PBRA6004ZZ8888	Bearing	4
C-55	M015MAB2007ZZ0	Idle shaft	2
C-56	M015MAB2028MC0	Block	2
C-57	PBRA6911ZZ8888	Bearing	1
C-58	PPLMMA24428888	Power lock	1
C-59	M030BRB2006ZZ0	Timing pulley	1
C-60	PRESSFS9DPB088	Reducer	1
C-61	PMTBMSMD082G1S	Servo motor	1
C-62	MH35FAA4001ZZ0	Plate	1
C-63	PSSRHYP18S5NAF	Sensor	1
C-64	MH35FAA4022ZZ0	Plate	1
C-65	MH35FAA4024ZZ0	Cover	1
C-66	MH35FAA4027ZZ0	Block	1
C-67	MH35FAA4023ZZ0	Nut	1
