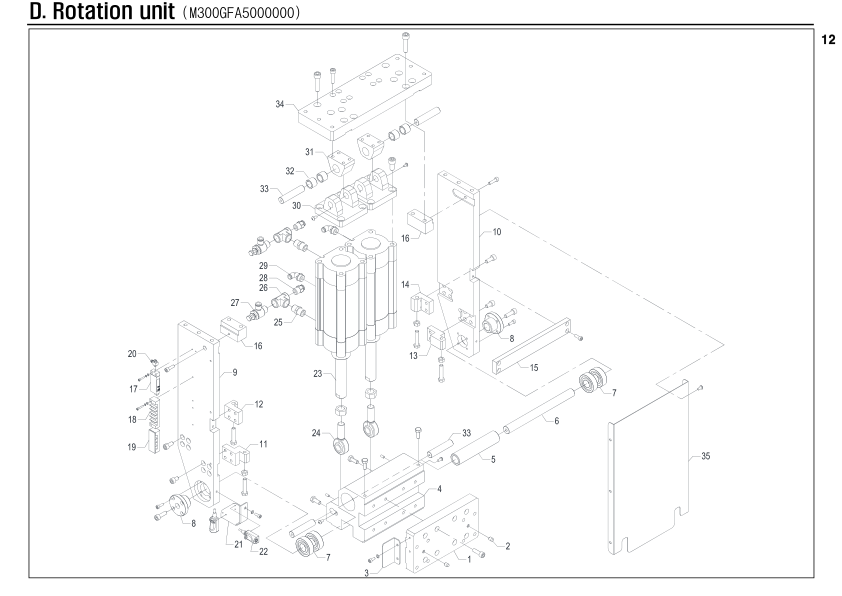

Rotation unit
Unit Number: M300GFA5000000
Robot: NEXIA-3000S 📎
Hover over image to inspect details
| Item Number | Part Number | Part Name | Quantity | Remarks |
|---|---|---|---|---|
| D-1 | M300GFB5010ZZ0 | Plate | 1 | |
| D-2 | M035HAA5012ZZ0 | Pin | 2 | |
| D-3 | M300GFB5011ZZ0 | Sensor bracket | 1 | |
| D-4 | M300GFA5006ZZ0 | Rot block | 1 | |
| D-5 | M300GFA5009ZZ0 | Collar | 1 | |
| D-6 | M300GFA5013MC0 | Shaft | 1 | |
| D-7 | PBRA6204ZZ8888 | Bearing | 4 | |
| D-8 | M300GFA5012ZZ0 | Holder | 2 | |
| D-9 | M300GFA5008ZZ0 | Bracket | 1 | |
| D-10 | M300GFA5007ZZ0 | Plate | 1 | |
| D-11 | M300GFA5018ZZ0 | Stopper | 1 | |
| D-12 | M300GFA5016ZZ0 | Stopper | 1 | |
| D-13 | M300GFA5019ZZ0 | Stopper | 1 | |
| D-14 | M300GFA5017ZZ0 | Stopper | 1 | |
| D-15 | M300GFA5020ZZ0 | Plate | 1 | |
| D-16 | M300GFA5015ZZ0 | Block | 2 | |
| D-17 | PAXVPS6102VNAM | Sensor | 1 | |
| D-18 | PTLA06P8888888 | Terminal | 1 | |
| D-19 | PTLA04P8888888 | Terminal | 1 | |
| D-20 | PAXFBUVLM56888 | Nipple | 1 | |
| D-21 | M300GFA5014ZZ0 | Sensor bracket | 1 | |
| D-22 | PSSRHYP18S5NAF | Sensor | 2 | |
| D-23 | PAXADNC08011K3 | Air cylinder | 2 | |
| D-24 | PBRRPOS1688THK | Rod end | 2 | |
| D-25 | PAXFDOUBLEPT38 | Fitting | 1 | |
| D-26 | PAXFSERVICET38 | Fitting | 2 | |
| D-27 | PAXFESC0838888 | Speed controller | 2 | |
| D-28 | PAXFEC08380888 | Fitting | 2 | |
| D-29 | PAXFEL08380888 | Fitting | 2 | |
| D-30 | M300GFA5003ZZ0 | Block | 2 | |
| D-31 | M300GFA5002ZZ0 | Clevis | 2 | |
| D-32 | PBRNFJ16168888 | Roller bearing | 4 | |
| D-33 | M300GFA5005MC0 | Pin | 4 | |
| D-34 | M300GFA5001ZZ0 | Plate | 1 | |
| D-35 | M300GFA5011ZZ0 | Cover | 1 |
