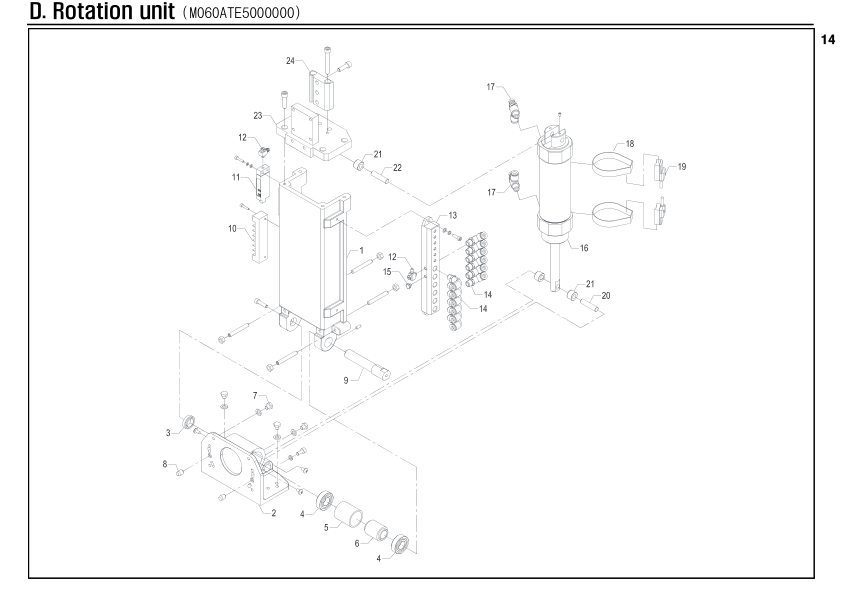

Rotation unit
Unit Number: M060ATE5000000
Robot: NEXIA-E-800SH 📎
Hover over image to inspect details
| Item Number | Part Number | Part Name | Quantity | Remarks |
|---|---|---|---|---|
| D-1 | M060HFA5002PW0 | Block | 1 | |
| D-2 | M060JJS5003ZZ3 | Plate | 1 | |
| D-3 | M060HFA5006ZZ0 | Collar | 1 | |
| D-4 | PBRA6002ZZ8888 | Bearing | 2 | |
| D-5 | M060HFA5010ZZ0 | Collar | 1 | |
| D-6 | M060HFA5011ZZ0 | Collar | 1 | |
| D-7 | M040HFA5025ZZ0 | Bolt | 4 | |
| D-8 | M035HAA5012ZZ0 | Pin | 2 | |
| D-9 | M060HFA5004ZZ0 | Pin | 1 | |
| D-10 | PTLA07P8888888 | Terminal | 1 | |
| D-11 | PAXVPS6102VNAM | Sensor | 1 | |
| D-12 | PAXFBUVLM56888 | Nipple | 2 | |
| D-13 | M040HFA5004ZZ1 | Air block | 1 | |
| D-14 | PAXFEL06180888 | Fitting | 12 | |
| D-15 | PAXFBBPM588888 | Plug | 1 | |
| D-16 | PAXA3589700888 | Cylinder | 1 | |
| D-17 | PAXFESC0618088 | Fitting | 2 | |
| D-18 | PSSO63BAND8888 | Sensor band | 2 | |
| D-19 | PSSOROSW888888 | Sensor | 2 | |
| D-20 | PMXPSFJ8368888 | Pin | 1 | |
| D-21 | PBRNHMK810ZZ88 | Roller bearing | 3 | |
| D-22 | M060HFA5009ZZ0 | Shaft | 1 | |
| D-23 | M040SJA5016ZZ1 | Block | 1 | |
| D-24 | M060JJS5005ZZ3 | Block | 1 |
