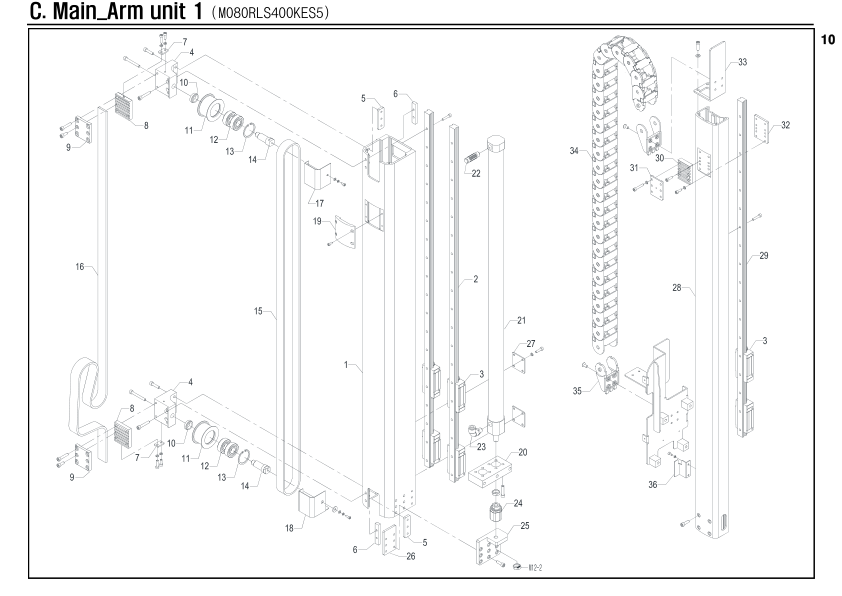

Main_Arm unit

Unit Number: M080RLS400KES5

Robot: NEXIA-E-800SH 📎

Hover over image to inspect details

Item Number	Part Number	Part Name	Quantity	Remarks
C-1	M080RLS4006MCXA	File	1
C-2	PLMRSHS201150L	LM rail	2
C-3	PLMBSHS20VKZ18	LM block	6
C-4	M035HAA4019ZZ0	Plate	2
C-5	M035HAA4022ZZ0	Plate	2
C-6	M035HAA4023ZZ0	Nut	2
C-7	M035HAA4035ZZ0	Plate	2
C-8	M040HFA4033MC0	Belt gripper	2
C-9	M035HAA4016ZZ0	Gripper block	2
C-10	M035HAA4018ZZ0	Collar	2
C-11	M035HAA4021ZZ0	Roller	2
C-12	PBRA6203ZZ8888	Bearing	5
C-13	PRGH040H888888	Snap ring	5
C-14	M035HAA4020ZZ0	Shaft	2
C-15	PBLTU8M2588888	Timing belt	2375
C-16	PBLTU8M3088888	Timing belt	1616
C-17	M035HAA4025ZZ0	Cover	1
C-18	M035HAA4024ZZ0	Cover	1
C-19	M040HFA4048MC0	Gripper block	1
C-20	M035HAA4026MC0	Block	1
C-21	PAXA3528508288	Cylinder	1
C-22	PAXZSILENCER14	Silincer	1
C-23	PAXFEL08140888	Fitting	1
C-24	PAXFKM12X12588	Floating joint	1
C-25	M035HAA4027ZZ0	Block	1
C-26	M035HAA4028ZZ0	Block	1
C-27	M030SBB4059ZZ0	Plate	2
C-28	M080RLS4007MCXB	File	1
C-29	PLMRSHS201090L	LM rail	1
C-30	M060JJS4014MC2	Belt gripper	1
C-31	M035HAA4017ZZ0	Gripper block	1
C-32	M035HAA4010ZZ0	Gripper nut	1
C-33	M080HRE4056ZZ0	Bracket	1
C-34	PCVE4501300088	Cableveyor end bracket	1
C-35	PCVH4501B07588	Cableveyor link	26
C-36	M035HAA4040ZZ0	Plate	1
C-37	M060JJS4001ZZ2	Plate A	1
C-38	M060ATE4003ZZ0	Plate	1
C-39	M060JJS4002ZZ2	Plate B	1
C-40	M040HFA4004MC0	Belt gripper	1
C-41	M040HFB4014MC0	Belt gripper	1
C-42	M040HFB4015MC0	Belt gripper	1
C-43	M040HFA4044ZZ0	Gripper block	2
C-44	M060ATE4013ZZ0	Plate	1
C-45	PRESB09005PD15	Reducer	1
C-46	PMTBMSME202GCH	Servo motor	1
C-47	M030BLA4011ZZ0	Collar	1
C-48	M060ATE4012ZZ0	Timing pulley	1
C-49	PPLMMA22408888	Power lock	1
C-50	M040HFA4024ZZ0	Bracket	1
C-51	M060ATE4050ZZ0	Shaft	1
C-52	M040SFS4009ZZ0	Shaft	4
C-53	PRGS017S888888	Snap ring	6
C-54	M035HAA4011ZZ0	Roller	3
C-55	M035HAA4005ZZ0	Plate A	1
C-56	M035HAA4032ZZ0	Cylinder bracket	1
C-57	M035HAA4031MC0	Belt gripper	1
C-58	M015MAB4040ZZ0	Bracket	1
C-59	PSSMRS52SH8888	Magnet sensor	1
C-60	PSSRHYP18S5NAF	Sensor	1
C-61	M040HFA4037ZZXA	Bracket	1
C-62	M040HFA4039MD0	Cover	1
C-63	M040HFA4042MD0	Cover	1
C-64	M040HFA4055ZZ0	Cover plate	1
C-1		Servo motor	1
