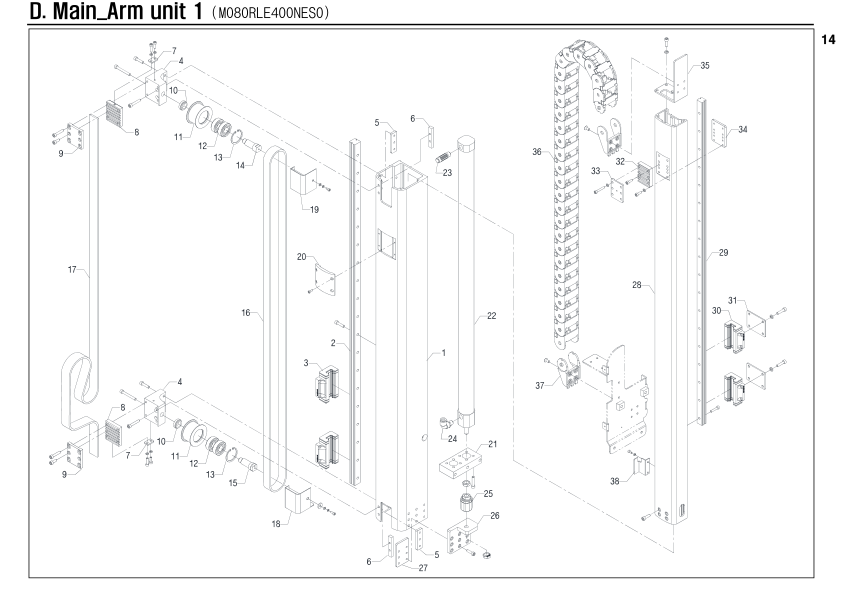

Main_Arm unit

Unit Number: M080RLE400NES0

Robot: NEXIA-E-800D 📎

Hover over image to inspect details

Item Number	Part Number	Part Name	Quantity	Remarks
D-1	M060JJS4005MC0	File	1
D-2	PLMRSAH251140L	LM rail	1
D-3	PLMBSAH25EM888	LM block	2
D-4	M035HAA4019ZZ0	Plate	2
D-5	M035HAA4022ZZ0	Plate	2
D-6	M035HAA4023ZZ0	Nut	2
D-7	M035HAA4035ZZ0	Plate	2
D-8	M040HFA4033MC0	Belt gripper	2
D-9	M035HAA4016ZZ0	Gripper block	2
D-10	M035HAA4018ZZ0	Collar	2
D-11	M035HAA4021ZZ0	Roller	2
D-12	PBRA6203ZZ8888	Bearing	10
D-13	PRGH040H888888	Snap ring	5
D-14	M035HAA4020ZZ0	Shaft	1
D-15	M035HAA4047ZZ0	Shaft	1
D-16	PBLTA102588888	Timing belt	2330
D-17	PBLTU8M3088888	Timing belt	1616
D-18	M035HAA4024ZZ0	Cover	1
D-19	M035HAA4025ZZ0	Cover	1
D-20	M040HFA4048MC0	Gripper block	1
D-21	M035HAA4026MC0	Block	1
D-22	PAXA3528508288	Cylinder	1
D-23	PAXZSILENCER14	Silincer	1
D-24	PAXFEL10140888	Fitting	1
D-25	PAXFKM12X12588	Floating joint	1
D-26	M035HAA4027ZZ0	Block	1
D-27	M035HAA4028ZZ0	Block	1
D-28	M080RLA4007MC0	File	1
D-29	PLMRSAH201080L	LM rail	1
D-30	PLMBSAH20EM888	LM block	2
D-31	M035HAA4041ZZ0	Plate	2
D-32	M035HAA4014MC0	Belt gripper	1
D-33	M035HAA4017ZZ0	Gripper block	1
D-34	M035HAA4010ZZ0	Gripper nut	1
D-35	M040HFA4056ZZ0	Bracket	1
D-36	PCVH4501B07588	Cableveyor link	27
D-37	PCVE4501300088	Cableveyor end bracket	1
D-38	M035HAA4040ZZ0	Plate	1
D-39	M040HFA4001ZZ0	Plate A	1
D-40	M035HAA4009ZZ0	Shaft	5
D-41	M035HAA4011ZZ0	Roller	3
D-42	PRGS017S888888	Snap ring	6
D-43	M040HFA4003ZZ0	Plate	1
D-44	M040HFA4004MC0	Belt gripper	1
D-45	M040HFA4014MC0	Belt gripper	1
D-46	M040HFA4015MC0	Belt gripper	1
D-47	M040HFA4044ZZ0	Gripper block	2
D-48	M035HAA4013ZZ0	Plate	1
D-49	PRESSFS9DPB088	Reducer	1
D-50	PMTBMSMD082G1T	Servo motor	1
D-51	M040HFB4012ZZ0	Timing pulley	1
D-52	PPLMMA24428888	Power lock	1
D-53	M040HFA4024ZZ0	Bracket	1
D-54	M080RLA4030ZZ0	Block	1
D-55	PAXAIDFW32AS25	Cylinder	1
D-56	PAXFEL06180888	Fitting	1
D-57	PAXFESC0618088	Fitting	1
D-58	PSSRHYP18S5NAF	Sensor	1
D-59	M035HAA4005ZZ0	Plate A	1
D-60	M035HAA4032ZZ0	Cylinder bracket	1
D-61	M035HAA4031MC0	Belt gripper	1
D-62	M015MAB4040ZZ0	Bracket	1
D-63	PSSMRS52SH8888	Magnet sensor	1
D-64	M040HFA4037ZZ0	Bracket	1
D-65	M080YDA4045ZZ0	Bracket	1
D-66	M040HFA4039MD0	Cover	1
D-67	M035HAA4043ZZ0	Cover	1
D-68	M040HFA4042MD0	Cover	1
D-69	M040HFA4055ZZ0	Cover plate	1
