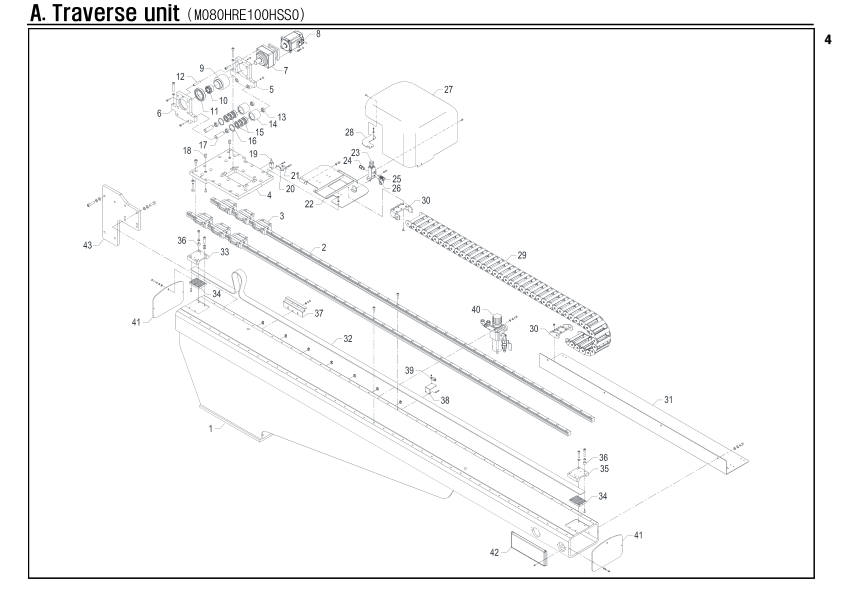

Traverse unit

Unit Number: M080HRE100HSS0

Robot: ZEST-II-800D 📎

Hover over image to inspect details

Item Number	Part Number	Part Name	Quantity	Remarks
A-1	M080HRE1001PW0	Body	1
A-2	PMLRHGR30R3160	LM rail	2
A-3	PLMBQHW30CC888	LM block	6
A-4	M080HRE1012ZZ0	LM Base	1
A-5	M080HRE1004ZZ0	Motor bracket	1
A-6	M080HRE1006ZZ0	Motor bracket	1
A-7	PRESSFS9DPB088	Reducer	1
A-8	PMTBMA751N2TN5	Servo motor	1
A-9	M040HFA2006ZZ0	Timing pulley	1
A-10	PPLMMA24428888	Power lock	1
A-11	PBRA6911ZZ8888	Bearing	1
A-12	M080HRE1007ZZ0	Shaft	1
A-13	M035HAA2008ZZ0	Collar	4
A-14	M035HAA2010ZZ0	Idle roller	2
A-15	PBRA6004ZZ8888	Bearing	6
A-16	PRGH042H888888	Snap ring	2
A-17	M080HRE2007ZZ0	Shaft	2
A-18	PMXPMSTH122088	Pin	2
A-19	PSSRHYP18S5NAF	Sensor	1
A-20	M030SBB1017MC0	Bracket	1
A-21	PSSMRS1SH88888	Sensor	1
A-22	M080HRE1014ZZ0	Lower plate	1
A-23	PAXSVEX113302G	Regulator	1
A-24	PAXFEC10140888	Fitting	1
A-25	PAXZSILENCER14	Silincer	1
A-26	PAXFEL12140888	Fitting	1
A-27	M080HRE1015MD0	Cover	1
A-28	M080HRE1032ZZ0	Box plate	1
A-29	PCVH4504B09588	Cableveyor link	42
A-30	PCVE4504300088	Cableveyor end bracket	1
A-31	M080HRE1010ZZ0	Cableveyor plate	1
A-32	PBLTA104088888	Timing belt	3560
A-33	M040HFA1004ZZ0	Gripper block	1
A-34	M040HFA1002MC0	Gripper	2
A-35	M040HFA1005ZZ0	Gripper block	1
A-36	M015MAB1016ZZ0	Block	4
A-37	M040HFA1007ZZ0	Bracket	1
A-38	M040HFA1018MC0	Bracket	1
A-39	PSSMRS52SHC888	Magnet	1
A-40	PAXSTAW4000AS2	Filter regulator	1
A-41	M080HRE1025ZZ0	Bracket	2
A-42	MXAKAAB1000000	Counter	1
A-43	MN20TEA1021PW0	Plate	1
