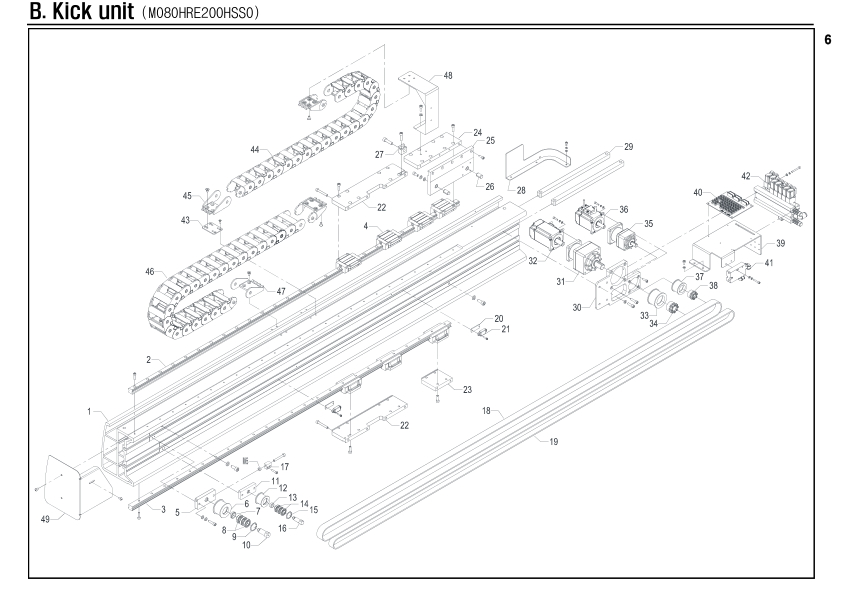

Kick unit
Unit Number: M080HRE200HSS0
Robot: ZEST-II-800D 📎
Hover over image to inspect details
| Item Number | Part Number | Part Name | Quantity | Remarks |
|---|---|---|---|---|
| B-1 | M080HRE2001MC0 | File | 1 | |
| B-2 | PMLRHGR20R1540 | LM rail | 1 | |
| B-3 | PMLRHGR20R1500 | LM rail | 1 | |
| B-4 | PLMBQHW20CC888 | LM block | 7 | |
| B-5 | M035HAA2018ZZ0 | Tension block | 1 | |
| B-6 | M080HRE2019ZZ0 | Timing pulley | 1 | |
| B-7 | M035HAA2035ZZ0 | Collar | 1 | |
| B-8 | PBRA6902ZZ8888 | Bearing | 3 | |
| B-9 | PRGH028H888888 | Snap ring | 1 | |
| B-10 | M080HRE2034ZZ0 | Shaft | 1 | |
| B-11 | MN20KFG2045ZZ0 | Roller block | 1 | |
| B-12 | M035HAA2043ZZ0 | Idle roller | 1 | |
| B-13 | M035HAA2044ZZ0 | Collar | 1 | |
| B-14 | PBRA6901ZZ8888 | Bearing | 3 | |
| B-15 | PRGH024H888888 | Snap ring | 1 | |
| B-16 | M035HAA2042ZZ0 | Shaft | 1 | |
| B-17 | MN20KFG2047ZZ0 | Tension block | 1 | |
| B-18 | PBLTU5M2588888 | Timing belt | 3825 | |
| B-19 | PBLTU5M2088888 | Timing belt | 3825 | |
| B-20 | M015MAB2035MC0 | Nut key | 2 | |
| B-21 | PSSMRS52SHC888 | Magnet | 2 | |
| B-22 | M080HRE4008ZZ0 | LM plate | 2 | |
| B-23 | M080HRE3009ZZ0 | LM plate | 1 | |
| B-24 | M080HRE3008ZZ0 | LM plate | 1 | |
| B-25 | M080HRE3011ZZ0 | LM plate | 1 | |
| B-26 | PMXPMSTH122088 | Pin | 2 | |
| B-27 | M080HRE2009ZZ0 | Block | 1 | |
| B-28 | M080HRE1033ZZ0 | Plate | 1 | |
| B-29 | M080HRE2011ZZ0 | Nut | 2 | |
| B-30 | M080HRE2015ZZ0 | Motor plate | 1 | |
| B-31 | PRESSFS9CPB048 | Reducer | 1 | |
| B-32 | PMTBMA401N2TN5 | Servo motor | 1 | |
| B-33 | M080HRE2017ZZ0 | Pulley | 1 | |
| B-34 | PPLMMA19338888 | Power lock | 1 | |
| B-35 | PRESSF5BPB0288 | Reducer | 1 | |
| B-36 | PMTBMA201N2TN5 | Servo motor | 1 | |
| B-37 | M080HRE2040ZZ0 | Pulley | 1 | |
| B-38 | PPLMMA12268888 | Power lock | 1 | |
| B-39 | M080HRE2029ZZ0 | Solenoid valve plate | 1 | |
| B-40 | PBDCIFVECT8888 | Board | 1 | |
| B-41 | PAXVAV015HS888 | Vacuum pump | 1 | |
| B-42 | M080HRE2100000 | Solenoid valve unit | 1 | |
| B-43 | MN20KFG2008ZZ0 | Bracket | 1 | |
| B-44 | PCVH4501B07588 | Cableveyor link | 20 | |
| B-45 | PCVE4501300088 | Cableveyor end bracket | 1 | |
| B-46 | PCVH4502307588 | Cableveyor link | 24 | |
| B-47 | PCVE4502300088 | Cableveyor end bracket | 1 | |
| B-48 | M080HRE3046ZZ0 | Bracket | 1 | |
| B-49 | M080HRE2021ZZ0 | Cover | 1 |
