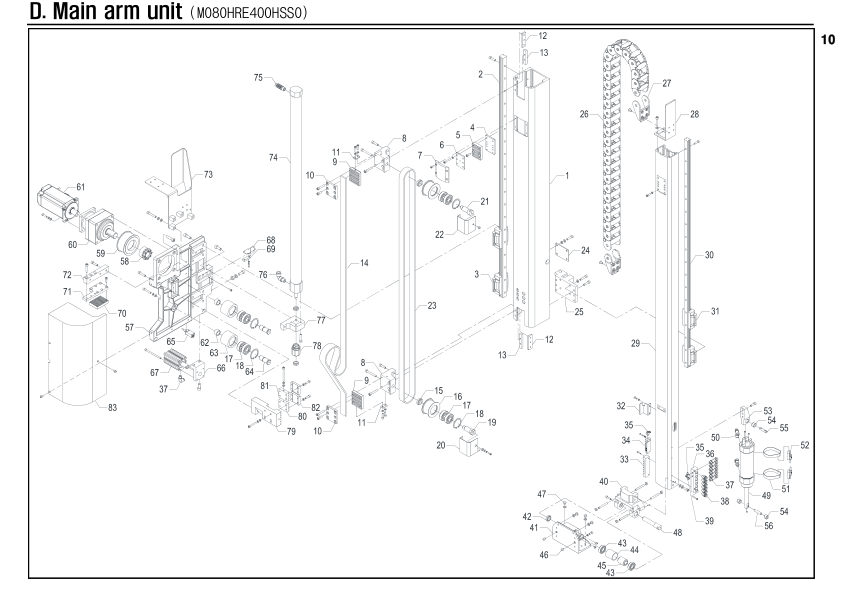

Main arm unit

Unit Number: M080HRE400HSS0

Hover over image to inspect details

Item Number	Part Number	Part Name	Quantity
D-1	M080HRE4005MC0	File	1
D-2	PMLRHGR25R1140	LM rail	1
D-3	PLMBQHW25CC888	LM block	2
D-4	M035HAA4010ZZ0	Gripper nut	1
D-5	M035HAA4014MC0	Belt gripper	1
D-6	M035HAA4017ZZ0	Gripper block	1
D-7	M040HFA4048MC0	Gripper block	1
D-8	M035HAA4019ZZ0	Plate	2
D-9	M040HFA4033MC0	Belt gripper	2
D-10	M035HAA4016ZZ0	Gripper block	2
D-11	M035HAA4035ZZ0	Plate	2
D-12	M035HAA4022ZZ0	Plate	2
D-13	M035HAA4023ZZ0	Nut	2
D-14	PBLTU8M3088888	Timing belt	1544
D-15	M035HAA4018ZZ0	Collar	2
D-16	M035HAA4021ZZ0	Roller	2
D-17	PBRA6203ZZ8888	Bearing	8
D-18	PRGH040H888888	Snap ring	4
D-19	M035HAA4047ZZ0	Shaft	1
D-20	M035HAA4024ZZ0	Cover	1
D-21	M035HAA4020ZZ0	Shaft	1
D-22	M035HAA4025ZZ0	Cover	1
D-23	PBLTA102588888	Timing belt	2330
D-24	M035HAA4041ZZ0	Plate	1
D-25	M080HRE4027ZZ0	Block	1
D-26	PCVH4501B07588	Cableveyor link	27
D-27	PCVE4501300088	Cableveyor end bracket	1
D-28	M080HRE4056ZZ0	Bracket	1
D-29	M080HRE4007MC0	File	1
D-30	PMLRHGR20R1080	LM rail	1
D-31	PLMBQHW20CC888	LM block	2
D-32	M035HAA4040ZZ0	Plate	1
D-33	PTLA07P8888888	Terminal	1
D-34	PAXVPS6102VNAM	Sensor	1
D-35	PAXFBUVLM56888	Nipple	2
D-36	M020HFB5018ZZ0	Air Block	1
D-37	PAXFEL06180888	Fitting	7
D-38	PAXFEC06180888	Fitting	6
D-39	PAXFBBPM588888	Plug	1
D-40	M080HRE5003ZZ0	Block	1
D-41	M060HFA5003ZZ0	Rot plate	1
D-42	M060HFA5006ZZ0	Collar	1
D-43	PBRA6002ZZ8888	Bearing	2
D-44	M060HFA5010ZZ0	Collar	1
D-45	M060HFA5011ZZ0	Collar	1
D-46	M035HAA5012ZZ0	Pin	2
D-47	M040HFA5025ZZ0	Bolt	4
D-48	M060HFA5004ZZ0	Pin	1
D-49	PAXA3589700888	Cylinder	1
D-50	PAXFESC0618088	Fitting	2
D-51	PSSO63BAND8888	Sensor band	2
D-52	PSSOROSW888888	Sensor	2
D-53	M080HRE5016ZZ0	Block	1
D-54	PBRNHMK810ZZ88	Roller bearing	3
D-55	M060HFA5009ZZ0	Shaft	1
D-56	PMXPSFJ8368888	Pin	1
D-57	M080HRE4001MC0	Plate	1
D-58	PPLMMA24428888	Power lock	1
D-59	M040HFB4012ZZ0	Timing pulley	1
D-60	PRESSFS9DPB088	Reducer	1
D-61	PMTBMA751A2TN6	Servo motor	1
D-62	M060HRE4036ZZ0	Collar	2
D-63	M035HAA4011ZZ0	Roller	2
D-64	M080HRE4009ZZ0	Shaft	2
D-65	PSSRHYP18S5NAF	Sensor	1
D-66	M080RLA4030ZZ0	Block	1
D-67	PAXAIDF32AS25T	Cylinder	1
D-68	M080HRE4040ZZ0	Sensor bracket	1
D-69	PSSMRS1SH88888	Sensor	1
D-70	M080HRE4031MC0	Belt gripper	1
D-71	M080HRE4032ZZ0	Belt gripper	1
D-72	M080HRE4047ZZ0	Belt gripper	1
D-73	M080HRE4037ZZ0	Bracket	1
D-74	PAXA3528508388	Cylinder	1
D-75	PAXZSILENCER14	Silincer	1
D-76	PAXFEL10140888	Fitting	1
D-77	M080HRE4026MC0	Block	1
D-78	PAXFKM12X12588	Floating joint	1
D-79	M080HRE4004MC0	Belt gripper	1
D-80	M040HFA4015MC0	Belt gripper	1
D-81	M040HFA4014MC0	Belt gripper	1
D-82	M040HFA4044ZZ0	Gripper block	2
D-83	M080HRE4042ZZ0	Cover	1
