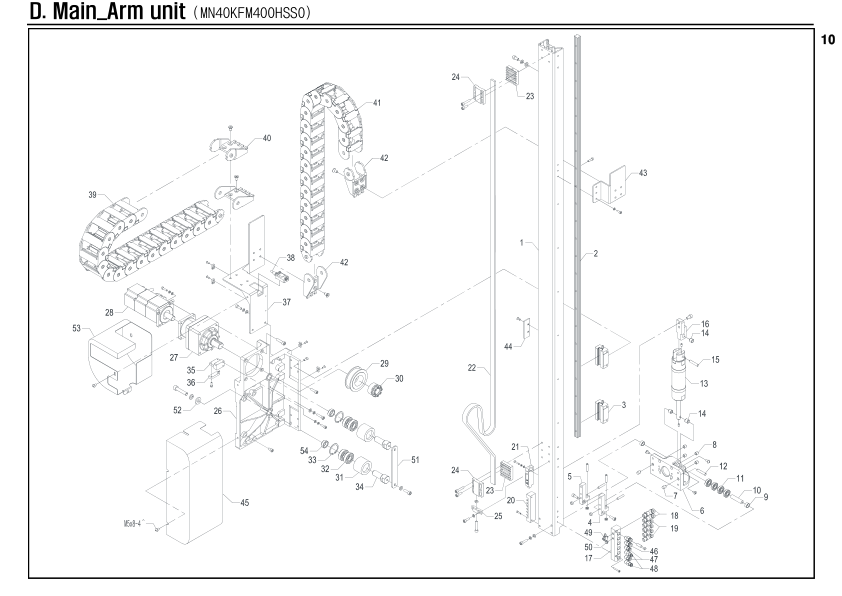

Main_Arm unit
Unit Number: MN40KFM400HSS0
Robot: ZEST-400D 📎
Hover over image to inspect details
| Item Number | Part Number | Part Name | Quantity | Remarks |
|---|---|---|---|---|
| D-1 | MN40KFG4002MC0 | File | 1 | |
| D-2 | PMLREGR15R1370 | LM rail | 1 | |
| D-3 | PLMBQEH15CA888 | LM block | 2 | |
| D-4 | MN20DAA5003ZB0 | Plate fix block | 1 | |
| D-5 | MN20DAA5004ZB0 | Plate fix block | 1 | |
| D-6 | MN20KFG4003MC0 | Plate | 1 | |
| D-7 | M035HAA5012ZZ0 | Pin | 2 | |
| D-8 | MN20KFG4047ZZ0 | Pin | 4 | |
| D-9 | MN20KFG4006ZZ0 | Collar | 2 | |
| D-10 | MN20KFG4007ZZ0 | Pin | 1 | |
| D-11 | PBRA6900ZZ8888 | Bearing | 4 | |
| D-12 | PMXPSFJ6328888 | Shaft | 1 | |
| D-13 | PAXA0082320588 | Cylinder | 1 | |
| D-14 | PBRNFJ69ZZ8888 | Roller bearing | 3 | |
| D-15 | M035HAA5009MC0 | Pin | 1 | |
| D-16 | MN20KFG4043ZZ0 | Bracket | 1 | |
| D-17 | M020HFB5018ZZ0 | Air Block | 1 | |
| D-18 | PAXFEL06180888 | Fitting | 2 | |
| D-19 | PAXFEL04180888 | Fitting | 4 | |
| D-20 | PTLA07P8888888 | Terminal | 1 | |
| D-21 | PAXVPS6102VNAM | Sensor | 1 | |
| D-22 | PBLTU8M1588888 | Timing belt | 1728 | |
| D-23 | MN20KFG4033MC0 | Belt gripper | 2 | |
| D-24 | MN20KFG4016ZZ0 | Gripper block | 2 | |
| D-25 | MN20KFG4044ZZ0 | Tension block | 1 | |
| D-26 | MN20KFG4001MCXC | LM bracket | 1 | |
| D-27 | PRESSF5CPB0488 | Reducer | 1 | |
| D-28 | PMTBMSMD042G1T | Servo motor | 1 | |
| D-29 | MN08KFA4012ZZ0 | Timing pulley | 1 | |
| D-30 | PPLMMA19338888 | Power lock | 1 | |
| D-31 | M015MAB3011ZZ0 | Roller | 2 | |
| D-32 | PBRA6002ZZ8888 | Bearing | 4 | |
| D-33 | PRGH032H888888 | Snap ring | 2 | |
| D-34 | MN20KFG3035ZZXA | Bearing holder | 2 | |
| D-35 | MN20KFG4041ZZ0 | Bracket | 1 | |
| D-36 | PSSMRS1SH88888 | Sensor | 1 | |
| D-37 | MN20KFG4034ZZ0 | Cableveyor fixed bracket | 1 | |
| D-38 | PSSRHYP18S5NAF | Sensor | 1 | |
| D-39 | PCVH4502307588 | Cableveyor link | 16 | |
| D-40 | PCVE4502300088 | Cableveyor end bracket | 1 | |
| D-41 | PCVH4501B07588 | Cableveyor link | 21 | |
| D-42 | PCVE4501300088 | Cableveyor end bracket | 1 | |
| D-43 | MN20KFG4023ZZ0 | Cableveyor bracket | 1 | |
| D-44 | MN20KFG4039ZZ0 | Bracket | 1 | |
| D-45 | MN20KFG4042ZZ0 | Cover | 1 | |
| D-46 | PAXFEC06180888 | Fitting | 2 | |
| D-47 | PAXFEC04188888 | Fitting | 2 | |
| D-48 | PAXFQSK1804888 | Fitting | 2 | |
| D-49 | PAXFBUVLM56888 | Nipple | 1 | |
| D-50 | PAXFBBPM588888 | Plug | 1 | |
| D-51 | MN20KWH4050ZZ0 | Plate | 1 | |
| D-52 | M020GRE4051ZZ0 | Washer | 2 | |
| D-53 | MN20KFG4051ZZ0 | Cover | 1 | |
| D-54 | MN20KFG4036ZZXA | Collar | 2 |
