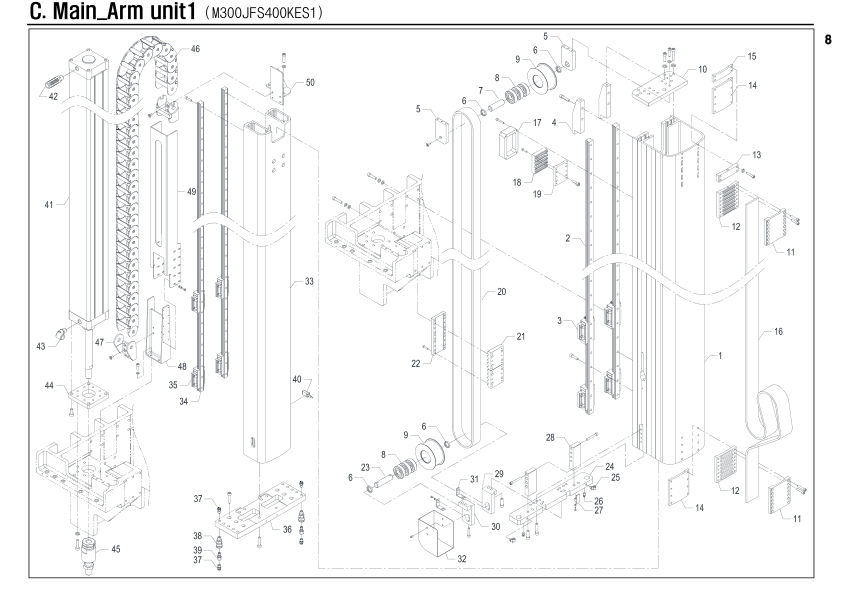

Main_Arm unit

Unit Number: M300JFS400KES1

Robot: NEXIA-3000S 📎

Hover over image to inspect details

Item Number	Part Number	Part Name	Quantity	Remarks
C-1	M300JFS4002MC0	File	1
C-2	PLMRSHS302040L	LM rail	2
C-3	PLMBSHS30CKZ18	LM block	4
C-4	M300JFA4031ZZ0	Block	2
C-5	M300JFA4005ZZ0	Plate	2
C-6	M200HFA4039ZZ0	Collar	4
C-7	M200HFA4006ZZ0	Roller shaft	1
C-8	PBRA6305ZZ8888	Bearing	18
C-9	M300JFA4007ZZ0	Roller	2
C-10	M300JFA4004ZZ0	Plate	1
C-11	M300JFA4021ZZ0	Belt gripper	2
C-12	M300JFA4020MC0	Belt gripper	2
C-13	M300JFA4024ZZ0	Block	1
C-14	M300JFA4025ZZ0	Nut plate	2
C-15	M300JFA4026ZZ0	Nut plate	1
C-16	PBLTA207508888	Timing belt	3000
C-17	M300JFA4048ZZ0	Gripper block	1
C-18	M300JFA4014MC0	Gripper	1
C-19	M300JFA4013ZZ0	Plate	1
C-20	PBLTA205008888	Timing belt	4920
C-21	M300JFB4012ZZ0	Plate	1
C-22	M300JFB4014MC0	Gripper	2
C-23	M200HFA4040ZZ0	Roller shaft	1
C-24	M300JFA4008ZZ0	Plate	1
C-25	PAXFEL06180888	Fitting	3
C-26	PAXFGPA1888888	Grease Nipple	2
C-27	M130HFA4040ZZ0	Plate	1
C-28	M300JFA4009ZZ0	Block	2
C-29	M300JFA4011ZZ0	Belt gripper	1
C-30	M300JFA4010ZZ0	Belt gripper	1
C-31	M130HFA4065ZZ0	Bracket	2
C-32	M300JFA4034ZZ0	Cover	1
C-33	M300JFA4003MC0	File	1
C-34	PLMRSHS252080L	LM rail	2
C-35	PLMBSHS25CKZ18	LM block	4
C-36	M300JFA4052ZZ0	Plate	1
C-37	PAXFEC08140888	Fitting	20
C-38	PAXZMHM2208888	Coupler	10
C-39	PAXZMCF2208888	Coupler	10
C-40	PSSRHYP18S5NAF	Sensor	1
C-41	PAXADNC1251552	Cylinder	1
C-42	PAXZSILENCER12	Silincer	1
C-43	PAXFEL16120888	Fitting	1
C-44	M300JFA4032ZZ0	Cylinder block	1
C-45	PAXFKM27X20888	Floating joint	1
C-46	PCVH6251B12588	Cableveyor link	35
C-47	PCVE6251300088	Cableveyor end bracket	1
C-48	M300JFA4028ZZ0	Cavblevor bracket	1
C-49	M300JFA4046ZZ0	Plate	1
C-50	M300JFA4029ZZ0	Bracket	1
C-51	M300JFA4001MC0	Base	1
C-52	M300JFB2007ZZ0	Plate	1
C-53	M300JFA2006ZZ0	Plate	1
C-54	M200TLA2009ZZ0	Plate	1
C-55	PRESSF15DPB088	Reducer	1
C-56	PMTBMSMD082G1S	Servo motor	1
C-57	M300JFA2005ZZ0	Helical gear	1
C-58	PPLMMA24428888	Power lock	1
C-59	M300JFA2004ZZ0	Cover	1
C-60	M300JFA4030ZZ0	Block	1
C-61	PAXAIDF32AS25T	Cylinder	1
C-62	M300JFA4045ZZ0	Joint	1
C-63	M300JFA1015ZZ0	Bracket	1
C-64	M015MAB1017MC0	Bracket	1
C-65	PSSMRS52SH8888	Magnet sensor	1
C-66	M300JFB4027ZZ0	Cableveyor bracket	1
C-67	PAXFPMM0888888	Fitting	10
C-68	M300JFA4016ZZ0	Block	1
C-69	M300JFA4015ZZ0	Block	1
C-70	M300JFA4017ZZ0	Plate	1
C-71	M300JFA4019ZZ0	Plate	1
C-72	M300JFA4023ZZ0	Plate	1
C-73	PRESAE15202PD40	Reducer	1
C-74	PMTBMSME402GCH	Servo motor	1
C-75	M300JFA4018ZZ0	Timing pulley	1
C-76	PPLMMA40628888	Power lock	1
C-77	PBRA6917ZZ8888	Bearing	1
C-78	M300JFA4022ZZ0	Shaft	3
C-79	PRGH062H888888	Snap ring	3
C-80	PRGS025S888888	Snap ring	6
C-81	M300JFA4041ZZ0	Shaft	3
C-82	M300JFA4044ZZ0	Roller	2
C-83	M300JFA4043ZZ0	Roller	1
C-84	M130MAA4030ZZ0	Guide shaft	1
C-85	PBRA6000ZZ8888	Bearing	1
C-86	PRGS010S888888	Snap ring	1
C-87	M300JFA4036ZZ0	Cover	1
C-88	M300JFS2053ZZ0	Arrow plate	1
