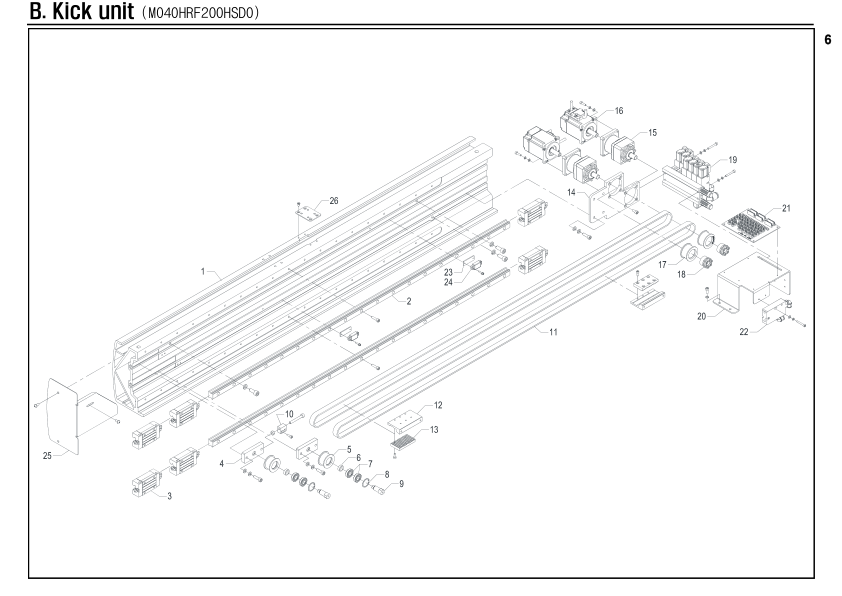

Kick unit
Unit Number: M040HRF200HSD0
Robot: ZEST-400D 📎
Hover over image to inspect details
| Item Number | Part Number | Part Name | Quantity | Remarks |
|---|---|---|---|---|
| B-1 | M040KJG2001MCXA | File | 1 | |
| B-2 | PMLRHGR20R1300 | LM rail | 2 | |
| B-3 | PLMBQHH20CA888 | LM block | 6 | |
| B-4 | MN20KFG2045ZZ0 | Roller block | 2 | |
| B-5 | MN20KFA2043ZZ0 | Idle roller | 2 | |
| B-6 | M035HAA2044ZZ0 | Collar | 2 | |
| B-7 | PBRA6901ZZ8888 | Bearing | 4 | |
| B-8 | PRGH024H888888 | Snap ring | 2 | |
| B-9 | MN20KFA2042ZZ0 | Shaft | 2 | |
| B-10 | MN20KFG2047ZZ0 | Tension block | 1 | |
| B-11 | PBLTU5M1588888 | Timing belt | 2 | |
| B-12 | MN20KFG4032ZZ0 | Belt plate | 2 | |
| B-13 | MN20KFG2031MC0 | Belt gripper | 2 | |
| B-14 | MN20KFG2015ZZ0 | Motor plate | 1 | |
| B-15 | PRES52Z050SA02 | Reducer | 2 | |
| B-16 | PMTBMA201N2TN5 | Servo motor | 2 | |
| B-17 | MN20KFA2040ZZ1 | Pulley | 2 | |
| B-18 | PPLMMA12268888 | Power lock | 2 | |
| B-19 | MN20KFG2100000 | Solenoid valve unit | 1 | |
| B-20 | MN20KFG2029ZZ0 | Solenoid valve plate | 1 | |
| B-21 | PBDCIFVECT8888 | Board | 1 | |
| B-22 | PAXVAV015HS888 | Vacuum pump | 1 | |
| B-23 | M015MAB2035MC0 | Nut key | 2 | |
| B-24 | PSSMRS52SHC888 | Magnet | 2 | |
| B-25 | MN20KFG2021ZZ0 | Cover | 1 | |
| B-26 | MN20KFG2008ZZ0 | Bracket | 1 |
