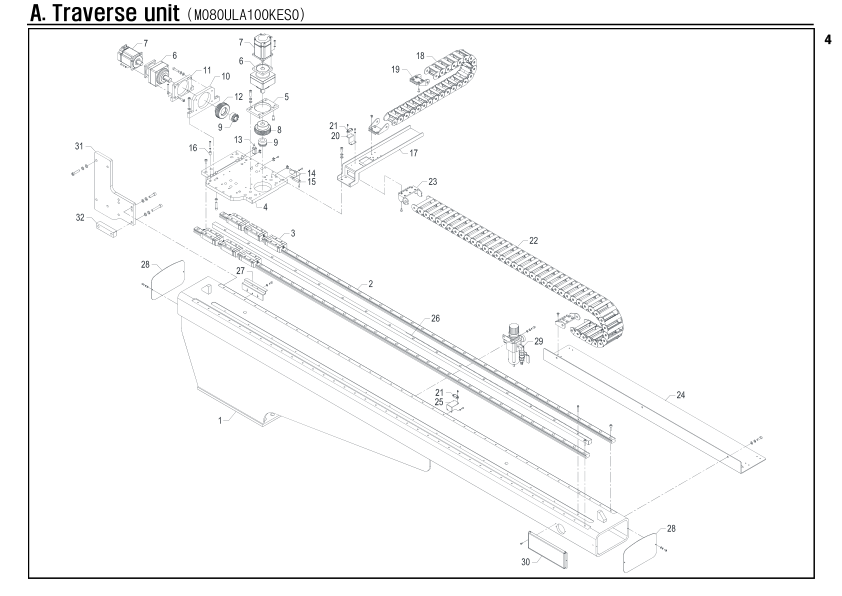

Traverse unit
Unit Number: M080ULA100KES0
Robot: NEXIA-800SW 📎
Hover over image to inspect details
| Item Number | Part Number | Part Name | Quantity | Remarks |
|---|---|---|---|---|
| A-1 | M080ULA1001PW0 | Body | 1 | |
| A-2 | PLMRSHS303000L | LM rail | 2 | |
| A-3 | PLMBSHS30VKZ18 | LM block | 6 | |
| A-4 | M130VLS1003TH0 | LM base | 1 | |
| A-5 | M080ULA1007ZZ0 | Plate | 1 | |
| A-6 | PRESSFS9DPB088 | Reducer | 2 | |
| A-7 | PMTBMSMD082G1S | Servo motor | 2 | |
| A-8 | M060KQE1008ZZ0 | Helical gear | 1 | |
| A-9 | PPLMMA24428888 | Power lock | 2 | |
| A-10 | M080ULA2006ZZ0 | Plate | 1 | |
| A-11 | M080ULA2024ZZ0 | Plate | 1 | |
| A-12 | M080JPA1008ZZ0 | Helical gear | 1 | |
| A-13 | PSSRHYP18S5NAF | Sensor | 1 | |
| A-14 | M015MAB1017MC0 | Bracket | 1 | |
| A-15 | PSSMRS52SH8888 | Magnet sensor | 1 | |
| A-16 | M080ULA2020ZZ0 | Pin | 6 | |
| A-17 | M080ULA2008ZZ0 | Cableveyor bracket | 1 | |
| A-18 | PCVH4502B07588 | Cableveyor link | 22 | |
| A-19 | PCVE4502300088 | Cableveyor end bracket | 1 | |
| A-20 | M250ULA2018MC0 | Bracket | 1 | |
| A-21 | PSSMRS52SHC888 | Magnet | 2 | |
| A-22 | PCVH4504B09588 | Cableveyor link | 41 | |
| A-23 | PCVE4504300088 | Cableveyor end bracket | 1 | |
| A-24 | M080ULA1010ZZ0 | Cableveyor plate | 1 | |
| A-25 | M040HFA1018MC0 | Bracket | 1 | |
| A-26 | M080ULA1050ZZ0 | Helical rack | 1 | |
| A-27 | M040HFA1007ZZ0 | Bracket | 1 | |
| A-28 | M080ULA1011ZZ0 | Cover | 2 | |
| A-29 | PAXSTAW4000ASY | Filter regulator | 1 | |
| A-30 | MXAKAAB1000000 | Counter | 1 | |
| A-31 | MN20TEA1021PW0 | Plate | 1 | |
| A-32 | M040HFA1021PW0 | Spacer | 1 |
