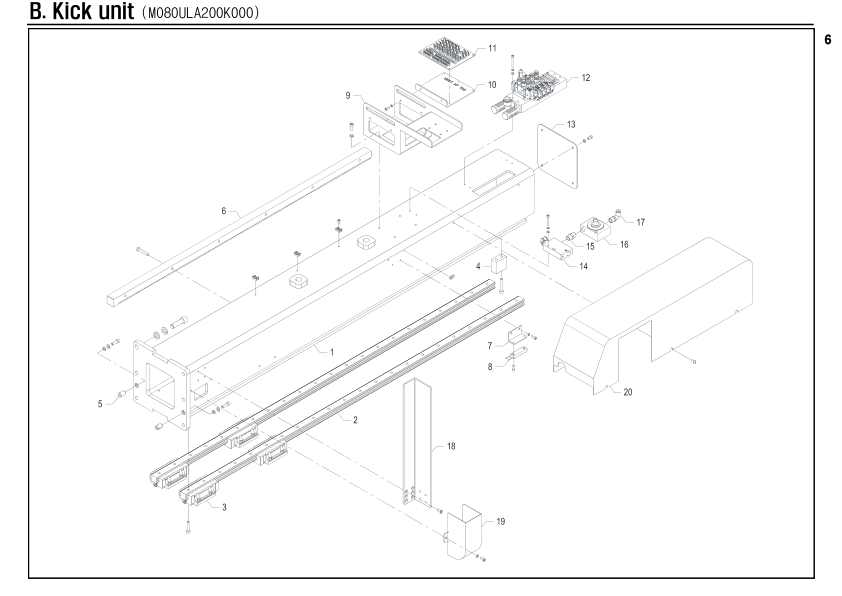

Kick unit
Unit Number: M080ULA200K000
Robot: NEXIA-800SW 📎
Hover over image to inspect details
| Item Number | Part Number | Part Name | Quantity | Remarks |
|---|---|---|---|---|
| B-1 | M080ULA2001PW0 | Frame | 1 | |
| B-2 | PLMRSHS251300L | LM rail | 2 | |
| B-3 | PLMBSHS25CKZ18 | LM block | 4 | |
| B-4 | M080ULA2011ZZ0 | Stopper | 1 | |
| B-5 | M080ULA2020ZZ0 | Pin | 2 | |
| B-6 | M080ULA2010ZZ0 | Helical rack | 1 | |
| B-7 | M080ULA1017MC0 | Bracket | 1 | |
| B-8 | PSSMRS52SH8888 | Magnet sensor | 1 | |
| B-9 | M080ULA2012ZZ0 | Cableveyor bracket | 1 | |
| B-10 | M040FFA2038ZZ0 | Plate | 1 | |
| B-11 | PBDCIFVECT8888 | Board | 1 | |
| B-12 | M080ULA2100001 | Solenoid valve unit | 1 | |
| B-13 | M080ULA2009ZZ0 | Cover | 1 | |
| B-14 | PAXVAV015HS888 | Vacuum pump | 1 | |
| B-15 | PAXFDOUBLEPT14 | Fitting | 1 | |
| B-16 | PAXVAF05888888 | Air filter | 1 | |
| B-17 | PAXFEL06140888 | Fitting | 1 | |
| B-18 | M130VLS4028ZZ0 | Bracket | 1 | |
| B-19 | M080ULA2038ZZ0 | Cover | 1 | |
| B-20 | M080ULA2013ZZ0 | Cover | 1 |
