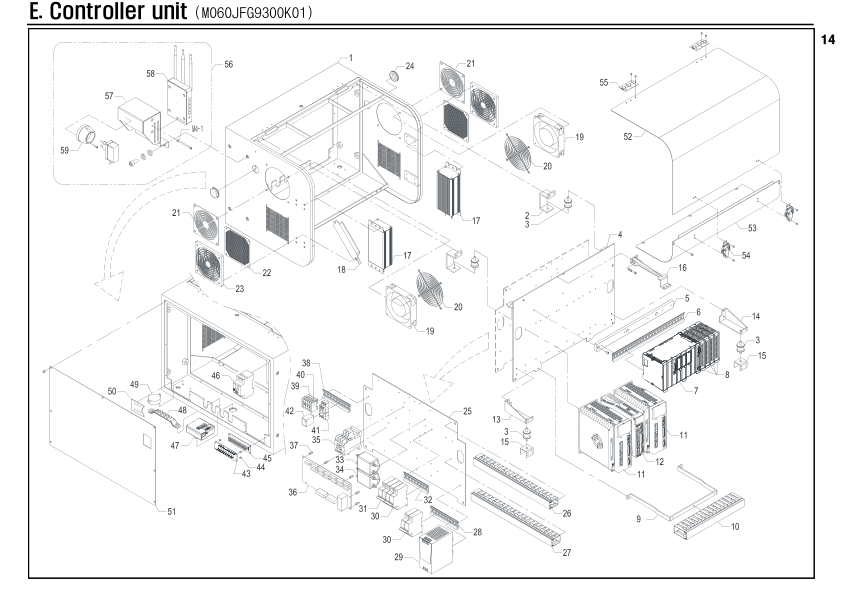

Controller unit

Unit Number: M060JFG9300K01

Robot: UNIK-II-1300D 📎

Hover over image to inspect details

Item Number	Part Number	Part Name	Quantity	Remarks
E-1	M080JPE9002ZZ1	Body	1
E-2	M020HFA9004ZZ0	Controller bracket	2
E-3	PMXK25M6888888	Antivibration gels	4
E-4	M080JPE9003ZZ1	Plate	1
E-5	M080JPE9020ZZ0	Base	1
E-6	M020KKA9020MC1	Terminal channel	1
E-7	PBDKBCPUCP232Z	CPU set(Central processor module)	1
E-8	PBDIOMODDM276A	I/O modules	4
E-9	M020KKA9009ZZ0	Controller bracket	1
E-10	MN20KFA9026MC0	Duct-30	1
E-11	PMTXPNE10A8888	Servo drive	2
E-12	PMTXPNE04A8888	Servo drive	1
E-13	M020KFE9005ZZ0	Controller bracket	1
E-14	M020KFE9006ZZ0	Controller bracket	1
E-15	M020HFA9007ZZ0	Controller bracket	2
E-16	M080JPE9015ZZ0	Controller bracket	1
E-17	PEXRS300W25K88	Regenerative resistor	2
E-18	PEXRS017W50K88	Regenerative resistor	1
E-19	PEXFSJ1238HA28	Fan	2
E-20	PEXFS105105888	Fan cover	2
E-21	PEXFSJ12COVER8	Fan cover	2
E-22	PEXFFILTER120S	Fan filter	2
E-23	PEXFFILTER102F	Fan filter	2
E-24	PMXCAPRUBPAK30	Cap	2
E-25	M080JPE9010ZZ2	Plate	1
E-26	MN20KFA9029MC1	Duct-30	1
E-27	M020KKA9025MC1	Duct-30	1
E-28	M020KKA9021MC1	Terminal channel	1
E-29	PSMPPRO2402410	Power supply	1
E-30	PNSCBKM2P10A88	Circuit breaker	2
E-31	PNSCBKM2P20A88	Circuit breaker	1
E-32	M020KKA9022MC0	Terminal chnnel	1
E-33	PFTEDITES1T020	Noise filter	1
E-34	PFTEDITES1T010	Noise filter	1
E-35	PNSEGMC22888	Contactor	1
E-36	PBDINTKEBAV200	Board	1
E-37	PEXSFM31005888	Support	7
E-38	M020KKA9026MC0	Terminal channel	1
E-39	PTLD0600015288	Terminal	5
E-40	PTLD0600015888	Separator	1
E-41	PRLKLY28888888	Relay socket	1
E-42	PRLALY2N1DC248	Relay	1
E-43	M020KKA9023MC0	Plate	1
E-44	PEXSFM30588888	Support	4
E-45	PBDCLEDKEBA888	Board	1
E-46	PNSC32KGRC2088	Circuit breaker	1
E-47	PEXJTBOXJB001A	Ketop handheld terminals	1
E-48	PEXELEBAR14588	Earth Bar	1
E-49	PEXZBUZZER8888	Buzzer	1
E-50	M020KKA9032ZZ0	Cover	1
E-51	M080JPE9012ZZ1	Cover	1
E-52	M080JPE9013ZZ1	Cover	1
E-53	M080JPE9014ZZ1	Cover	1
E-54	PMXBY117888888	Hook	2
E-55	PMXBYHS1560888	Hinge	2
E-56	MXCTKB70000000	Board	1
E-57	M020KFG7003ZZ1	Cover	1
E-58	PNN704BCM88888	Access point	1
E-59	PN1HCON8888888	Concent	1
