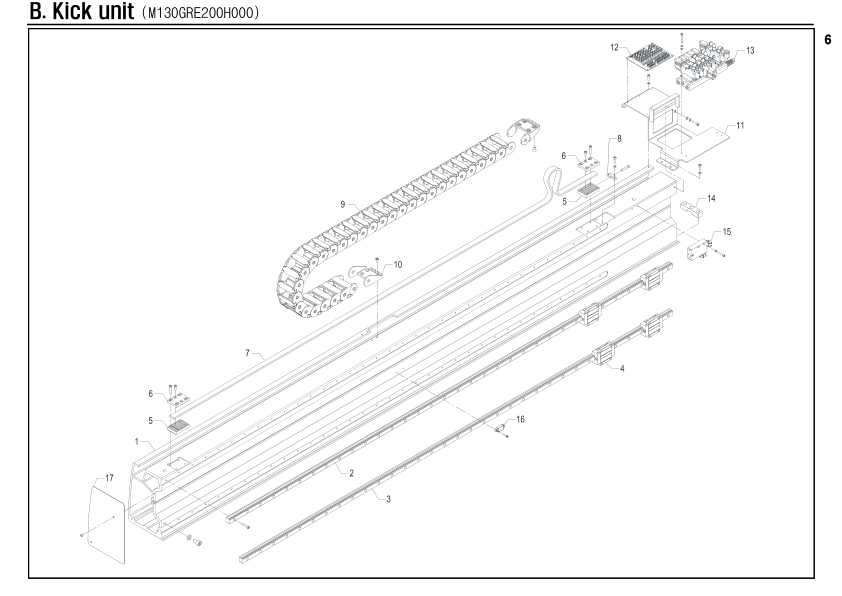

Kick unit
Unit Number: M130GRE200H000
Robot: UNIK-II-1300D 📎
Hover over image to inspect details
| Item Number | Part Number | Part Name | Quantity | Remarks |
|---|---|---|---|---|
| B-1 | M130GRE2001MC0 | File | 1 | |
| B-2 | PMLRHGR20R2020 | LM rail | 1 | |
| B-3 | PMLRHGR20R1960 | LM rail | 1 | |
| B-4 | PLMBQHW20CC888 | LM block | 4 | |
| B-5 | M020KFC3033MC0 | Gripper | 2 | |
| B-6 | M015MAB3016ZZ0 | Gripper block | 2 | |
| B-7 | PBLTU8M2088888 | Timing belt | 2160 | |
| B-8 | MN20KFG4044ZZ0 | Tension block | 1 | |
| B-9 | PCVH4502B09588 | Cableveyor link | 30 | |
| B-10 | PCVE4502300088 | Cableveyor end bracket | 1 | |
| B-11 | M130GRE2029ZZ0 | SOL_V/V_PLATE | 1 | |
| B-12 | PBDCIFKEBA8888 | Board | 1 | |
| B-13 | M130GRE2100000 | Solenoid valve plate | 1 | |
| B-14 | M130GRE2011ZZ0 | Nut | 1 | |
| B-15 | PAXVAV015HS888 | Vacuum pump | 1 | |
| B-16 | PSSMRS52SHC888 | Magnet | 1 | |
| B-17 | M130GRE2021ZZ0 | Cover | 1 |
