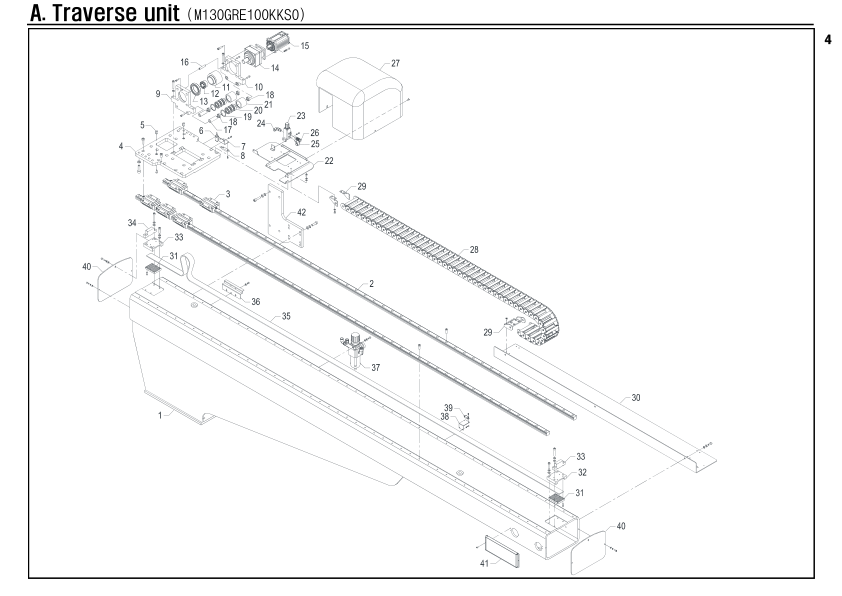

Traverse unit
Unit Number: M130GRE100KKS0
Robot: UNIK-II-1300D 📎
Hover over image to inspect details
| Item Number | Part Number | Part Name | Quantity | Remarks |
|---|---|---|---|---|
| A-1 | M130GRE1001PW0 | Body | 1 | |
| A-2 | PLMRSHS303640L | LM rail | 2 | |
| A-3 | PLMBSHS30CKZ18 | LM block | 5 | |
| A-4 | M130GRE1012ZZ0 | LM Base | 1 | |
| A-5 | PMXPMSTH122088 | Pin | 2 | |
| A-6 | PSSRHYP18S5NAF | Sensor | 1 | |
| A-7 | M060HFA1017MC0 | Bracket | 1 | |
| A-8 | PSSMRS52SH8888 | Magnet sensor | 1 | |
| A-9 | M080HRE1006ZZ0 | Motor bracket | 1 | |
| A-10 | M080HRE1004ZZ0 | Motor bracket | 1 | |
| A-11 | M040HFA2006ZZ0 | Timing pulley | 1 | |
| A-12 | PPLMMA24428888 | Power lock | 1 | |
| A-13 | PBRA6911ZZ8888 | Bearing | 1 | |
| A-14 | PRESSFS9DPB088 | Reducer | 1 | |
| A-15 | PMTBEMJ10APB22 | Servo motor | 1 | |
| A-16 | M080HRE1007ZZ0 | Shaft | 1 | |
| A-17 | M080HRE2007ZZ0 | Shaft | 2 | |
| A-18 | M035HAA2008ZZ0 | Collar | 4 | |
| A-19 | PRGH042H888888 | Snap ring | 2 | |
| A-20 | PBRA6004ZZ8888 | Bearing | 6 | |
| A-21 | M035HAA2010ZZ0 | Idle roller | 2 | |
| A-22 | M130GRE1014ZZ0 | Lower plate | 1 | |
| A-23 | PAXSVEX113302G | Regulator | 1 | |
| A-24 | PAXFEL10148888 | Fitting | 1 | |
| A-25 | PAXFEL12140888 | Fitting | 1 | |
| A-26 | PAXZSILENCER14 | Silincer | 1 | |
| A-27 | M130GRE1015MD0 | Cover | 1 | |
| A-28 | PCVH4504B0958 | Cableveyor link | 48 | |
| A-29 | PCVE4504300088 | Cableveyor end bracket | 1 | |
| A-30 | M130GRE1010ZZ0 | Cableveyor plate | 1 | |
| A-31 | M040HFA1002MC0 | Gripper | 2 | |
| A-32 | M040HFA1005ZZ0 | Gripper block | 1 | |
| A-33 | M040HFA1004ZZ0 | Gripper block | 1 | |
| A-34 | M100FLA1016ZZ0 | Stopper | 2 | |
| A-35 | PBLTA104088888 | Timing belt | 3990 | |
| A-36 | M040HFA1007ZZ0 | Bracket | 1 | |
| A-37 | PAXSTAW4000AS5 | Filter regulator | 1 | |
| A-38 | M040HFA1018MC0 | Bracket | 1 | |
| A-39 | PSSMRS52SHC888 | Magnet | 1 | |
| A-40 | M130GRE1025ZZ0 | Cover | 2 | |
| A-41 | MXAKAAB1000000 | Counter | 1 | |
| A-42 | MN20TEA1021PW0 | Plate | 1 |
